SC PC Single-Mode Simplex 3.0 Mm PVC (LSZH) Fiber Optic Cable
Product Description:
HTF 9/125um single-mode fiber optic patch cords are widely used in fiber optic network wiring systems such as FTTX, CATV, LAN and fiber optic communication systems. We provide jumpers with various connectors, including: SC, LC, FC, ST, MU, D4, DIN, E2K, etc., with Ultra Polishing (UPC) and Multi-Angle Polishing (APC).
| Place of Origin: | Hebei, China |
| Brand: | HTF |
| Model: | SC UPC SM SX jumper |
| Type: | Optical fiber cable |
| Single-mode fiber: | G652D, G652D |
| Number of fibers: | 1. |
| Adopt: | Fiber to the home |
| Product name: | SC to SC UPC SM SX jumper |
| Application: | FTTH FTTB FTTX network |
| Tensile strength: | > 70N |
| Certification: | ISO9001 certification |
| Wavelength: | 1310/1550 nm |
| Insertion loss: | typical value ≤0.2dB, maximum value ≤0.3dB |
| Fiber type: | single mode |
| Return loss: | ≥50dB (PC), ≥60dB (APC) |
| Durability: | ≤0.2dB typical change, 1000 coordination |
| Working temperature: | -20~ 70℃ |

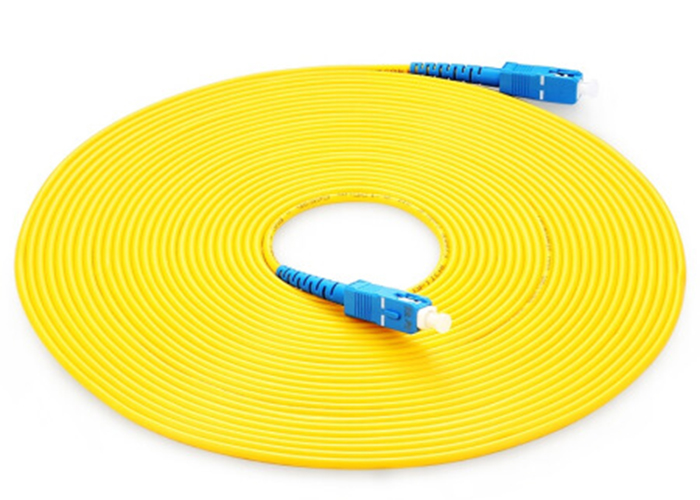

Pictures:
HTF can also customize fiber optic jumpers according to customers' specific requirements.
SC-SC fiber optic jumpers are used as terminal jumpers from equipment to fiber optic cable links. With a thick protective layer, SC-SC fiber optic jumpers are usually used to connect SC eiver and junction box between optical TRAN. SC-SC fiber optic patch cords are mainly divided into two categories:
Single-mode fiber: SC-SC single-mode fiber jumper is generally yellow, and the connector and protective cover are blue; transmission 2 is ST ANCE long.
Multimode fiber: SC-SC multimode fiber jumpers are usually represented in orange, some are represented in gray, and the connectors and protective sleeves are beige or black. The transmission two ST ANCE is relatively short.
